型号 |
叉载能力 kg/mm |
夹载能力 kg/mm |

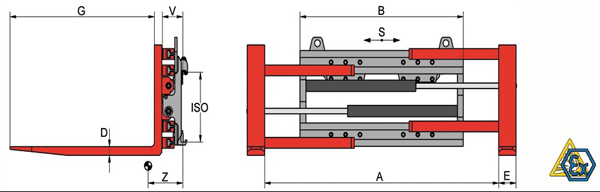

S mm |
张臂范围 A mm |
B mm |
D mm |
E mm |
G mm |
ISO cl. |
失载距 V mm |
水平重心 Z mm |
自重 kg |
|
|
1 T 411 |
1.500/500 |
700/500 |
±100 |
340-1.300 |
750 |
40 |
100 |
1.200 |
2 |
133 |
268 |
236 |
|
|
|
|
|
|
340-1.520 |
970 |
|
|
|
|
|
251 |
258 |
|
|
|
|
|
|
350-1.700 |
1.130 |
|
|
|
|
|
244 |
269 |
|
|
|
|
|
|
330-1.730 |
1.200 |
|
|
|
|
|
241 |
273 |
|
|
1,5 T 411 |
2.300/500 |
1.250/500 |
±100 |
320-1.500 |
970 |
45 |
120 |
1.200 |
2 |
133 |
266 |
323 |
|
|
|
|
|
|
40-940 |
970 |
|
|
|
|
|
254 |
312 |
|
|
|
|
|
|
330-1.680 |
1.130 |
|
|
|
|
|
253 |
335 |
|
|
|
|
|
|
90-1.270 |
1.200 |
|
|
|
|
|
252 |
336 |
|
|
|
|
|
|
310-1.710 |
1.200 |
|
|
|
|
|
270 |
339 |
|
|
1,5 T 401 |
2.300/500 |
1.250/500 |
without |
260-1.260 |
850 |
45 |
120 |
1.200 |
2 |
126 |
260 |
300 |
|
|
2 T 411 |
2.800/500 |
2.000/500 |
±100 |
280-1.380 |
970 |
50 |
120 |
1.200 |
2/3 |
143 |
262 |
384 |
|
|
|
|
|
|
320-1.620 |
1.130 |
|
|
|
|
|
257 |
396 |
|
|
|
|
|
|
70-1.120 |
1.130 |
|
|
|
|
|
259 |
391 |
|
|
|
|
|
|
120-1.420 |
1.330 |
|
|
|
|
|
252 |
408 |
|
|
|
|
|
|
320-1.820 |
1.330 |
|
|
|
|
|
250 |
412 |
|
|
2 T 401 |
2.800/500 |
2.000/500 |
without |
300-1.300 |
850 |
50 |
120 |
1.200 |
2/3 |
136 |
282 |
339 |
|
|
3 T 411 |
3.600/500 |
2.500/500 |
±100 |
260-1.560 |
1.130 |
50 |
150 |
1.200 |
3 |
152 |
255 |
510 |
|
|
|
|
|
|
260-1.760 |
1.330 |
|
|
|
|
|
249 |
529 |
|
|
|
|
|
|
130-1.630 |
1.460 |
|
|
|
|
|
245 |
539 |
|
|
|
|
|
|
260-1.890 |
1.460 |
|
|
|
|
|
245 |
541 |
|
|
4 T 411 |
4.150/500 |
2.900/500 |
±100 |
260-1.560 |
1.130 |
50 |
150 |
1.200 |
3 |
162 |
245 |
572 |
|
|
|
|
|
|
260-1.760 |
1.330 |
|
|
|
|
|
240 |
591 |
|
|
|
|
|
|
130-1.630 |
1.460 |
|
|
|
|
|
237 |
603 |
|
|
|
|
|
|
260-1.890 |
1.460 |
|
|
|
|
|
236 |
606 |
|
|
4,5 T 411 |
5.000/500 |
3.500/500 |
±100 |
230-1.480 |
1.200 |
60 |
150 |
1.200 |
3 |
188 |
253 |
689 |
|
|
|
|
|
|
250-1.650 |
1.330 |
|
|
|
|
|
248 |
709 |
|
|
|
|
|
|
120-1.520 |
1.460 |
|
|
|
|
|
245 |
725 |
|
|
|
|
|
|
220-1.720 |
1.460 |
|
|
|
|
|
244 |
728 |
|
|
|
|
|
|
260-1.890 |
1.550 |
|
|
|
|
|
241 |
744 |
|
|
5 T 411 |
6.200/600 |
3.500/600 |
±160 |
240-1.740 |
1.460 |
70 |
150 |
1.200 |
4 |
176 |
237 |
879 |
|
|
|
|
|
|
280-1.910 |
1.550 |
|
|
|
|
|
235 |
894 |
|
|
|
|
|
|
550-2.450 |
1.550 |
|
|
|
|
|
227 |
958 |
|
|
|
|
|
|
280-2.180 |
1.820 |
|
|
|
|
|
228 |
936 |
|
|
6 T 411 B |
8.000/600 |
4.800/600 |
±160 |
180-1.810 |
1.550 |
60 |
200 |
1.200 |
4 |
259 |
238 |
1.410 |
* |
|
|
|
|
|
140-2.040 |
1.860 |
|
|
|
|
|
229 |
1.499 |
* |
|
|
|
|
|
340-2.440 |
1.860 |
|
|
|
|
|
229 |
1.506 |
* |
|
8 T 411 B |
8.000/900 |
6.500/600 |
VSS |
310-2.510 |
2.200 |
70 |
200 |
1.200 |
4 |
309 |
241 |
2.045 |
* |
单独侧移 - 叉车需提供双附加油路

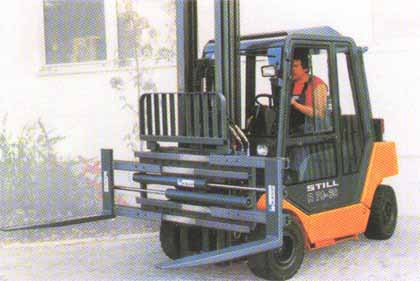

叉夹通常用来搬运托盘类货物，也可用来夹持货物。将不同形式的夹臂套装在货叉上又可以变为特殊属具。
非侧移型号为T401，可提供螺栓固定式货叉；
可按客户要求加装油缸和侧移保护装置。
